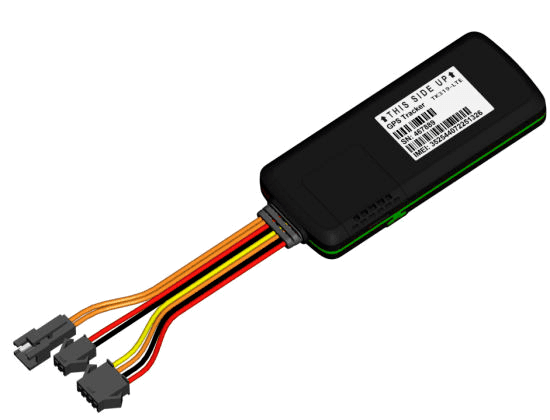

Eelink TK319

The TK319 vehicle tracker is a self-contained, integrated commercial grade vehicle tracking device that uses GPS (uBlox IC) satellite location in combination with UMTS/HSPA module of uBlox’s UMTS/HSPA to report that location. The UMTS/HSPA module is used to provide efficient and cost-effective high-speed mobile connectivity than any other modules.

Show more

The TK319 vehicle tracker is optimized for reliability, cost, and size that is targeted at expandable and truck, cargo or electric motor oriented IOT applications, etc. This real-time GPS vehicle tracker is also targeted at the property tracking market.

Location and tracking

  • GPS support
  • Continuous tracking mode

Mobile networks

  • 3G Network
  • GSM Band 850/900/1800/1900
  • WCDMA Band 800/850/900/1900/2100

Power supply

  • Build-in battery 140 mAh
  • External power supply (12 – 72V)

Inputs and outputs

  • 1 ACC input
  • 1 output

Other features

  • Internal antennas
  • Waterproof level IP65
  • Built-in G-sensor

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47723

General information

PurposeVehicle
InstallationProfessional

Housing

Weight50 g (1.76 oz.)
Size89x37x12 mm (3.5x1.46x0.47 in)
Waterproof classIP65

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeWCDMA 800/850/900/1900/2100, GSM/GPRS 850/900/1800/1900
Internal antenna (Connection)Yes
Cellular network generation3G, 2G

Interfaces

Number of outputs1
Number of inputs (all types)1
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes
Supported

Hardware features

Battery capacity140 mAh
Built-in batteryYes
Emergency buttonYes
Supported

Tracking features

Tracking modesContinuous

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported

Self monitoring

Network signal levelYes
Supported
GNSS signal levelYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Remote outputs controlYes (over GPRS), Yes
Supported
Firmware update OTAYes
