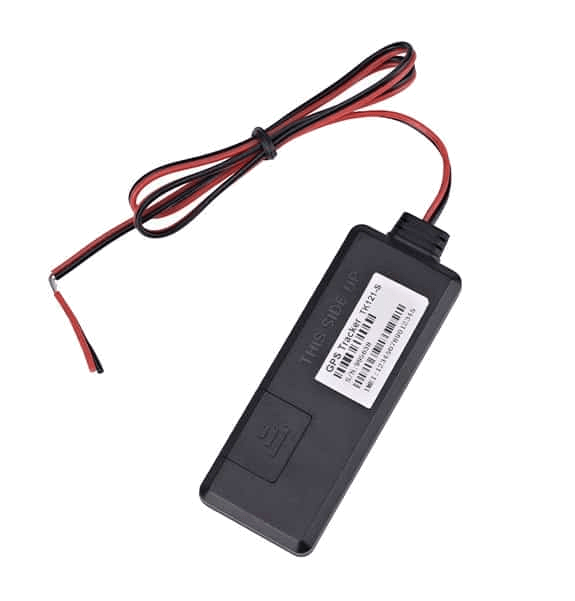

Eelink TK121

Eelink TK119 GPS/BEIDOU/GLONASS tracker has a very wide range of industrial and commercial applications, small and powerful, wide voltage 7-72V, cutting oil function. Typical application areas: logistics enterprises, fleet management, bus management, insurance, power, oil, telecommunications, taxi, car sales, car rental, vehicle maintenance, technology researchers.

Show more

TK121 vehicle GPS tracker is one of the smallest, yet smartest device in its class. Masterfully designed with an all-powerful GPS for a quick and precise positioning, and LBS for assisted positioning. Comes with a best-in-class speed alert system that allows you set alarm for when a speed limit is crossed.

Package contents

Eelink TK121 is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.
Also, manufacturer offers optional accessories such as Power Cables(Fault)and an engine relay for remote cut off / resume oil.

Product features:

  • Super Wide Input Voltage: 6-36V DC.
  • Support GPS / Beidou / Glonass precise positioning system, support A-GPS.
  • GPS data uploaded by GPRS regularly, Web browser platform, Smart phone app platform and SMS query.
  • Supports ACC status checking and vehicle status notifying.
  • Built-in battery, Power disconnect alarm & Low battery alarm.
  • Built-in G-sensor, Vibration, collision and falling alarm.
  • GEO-fence alarm, speed & shift alarm.
  • Use relay to remotely cut the oil.
  • Extend I/O port to add extension function.
  • Multiple protocol support, OTA upgrade program.
  • Water proof level IP67.

Location and tracking

Eelink TK121 is embedded with GPS, it also supports GLONASS and Beidou systems.
As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

TK121 has a Quad-band GSM 2G that allows to operate it all over the world.

Power supply

TK121 features a rechargeable 80 mAh battery. When fully charged it ensures about 1 hour of device operation (in normal conditions).

Local and remote management

Eelink TK121 can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.


Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47723
Auto registrationYes

General information

PurposeVehicle
Size86x30x11 mm (3.39x1.18x0.43 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
GPSYes
GLONASSYes
BeidouYes
Assisted GPSYes

Features

Remote outputs controlYes
OdometerYes
Built-in batteryYes
Battery capacity80 mAh

Interfaces

Discrete inputs3
Number of outputs1
