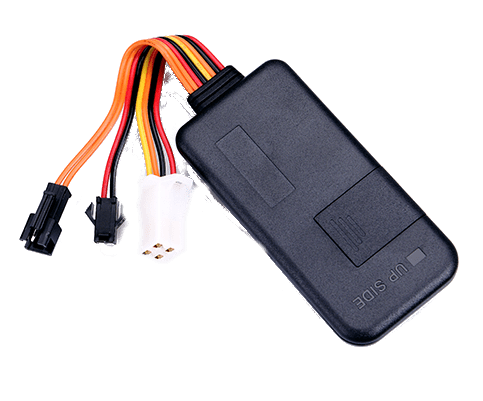

Eelink TK116

TK116 GPS is a low cost tracker, which allows you to monitor and control the vehicle via GPRS. It can help customers to manage their fleets. TK116 also has discrete input which it is very useful in ignition status monitoring. With the help of digital output you can switch off vehicle's engine distantly.

Show more

Location and tracking

  • GPS Support
  • Continuous tracking mode
  • LBS Support
  • A-GPS

Mobile networks

  • 850/900/1800/1900MHz
  • 2G Network

Power supply

  • Build-in battery (200 mAh)
  • External power supply (6-36)

Inputs and outputs

  • 1 Discrete input
  • 1 Output

Other features

  • Emergency button
  • Remote management
  • Accessories

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47734

General information

PurposeVehicle
InstallationProfessional

Housing

Weight45 g (1.59 oz.)
Size79.5x38.5x10.5 mm (3.13x1.52x0.41 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
Assisted GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported

Hardware features

Emergency buttonYes
On request
Internal temperature sensorYes
On request

Hardware extras

Emergency buttonYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported

Events monitoring

Fall/ShakeYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS)
Supported
Remote outputs controlYes (over GPRS)
Supported
Forced GNSS location update over SMSYes
On request
