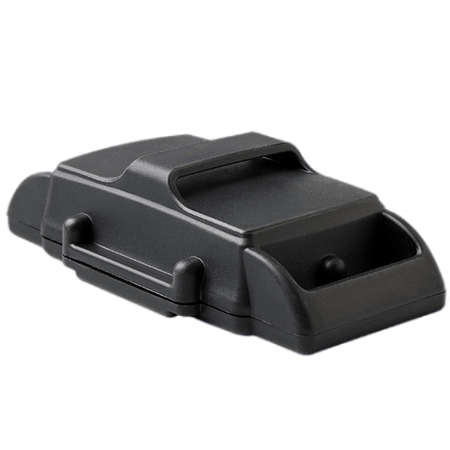

Digital Matter Yabby Edge
Indoor/Outdoor asset tracker in a small rugged housing. Features cloud-based location solving for 12 years of battery life.
Show more
Indoor/Outdoor asset tracker in a small rugged housing. Features cloud-based location solving for 12 years of battery life.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47644 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 82 g (2.89 oz.) |
| Size | 84x63x24 mm (3.31x2.48x0.94 in) |
| Waterproof class | IP68 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66, LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66 |
| Cellular network generation | CAT NB-IoT, Cat NB1, CAT NB2, Cat M1 |
| WiFi | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Beidou | Yes |
Features
| Odometer | Yes |
Interfaces
| Discrete inputs | 8 |
Input Fields
State Fields
Events monitoring
