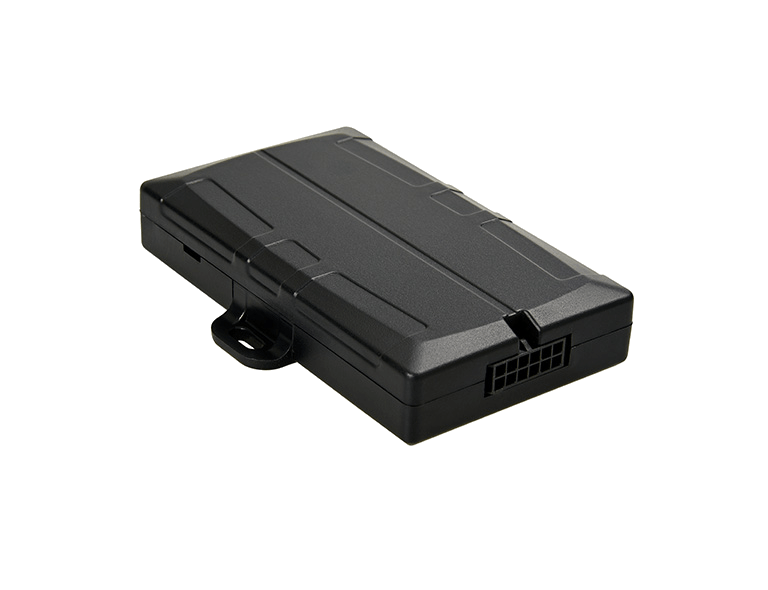

Digital Matter Dart2

The Dart2 is a compact cellular 2G or 4G Cat-M1/NB-IoT tracking device with a variety of inputs and outputs, and driver-ID capability, to cater for entry-level tracking and fleet management applications, without sacrificing performance or reliability.

Show more

The internal backup battery provides alerts and tracking operations even when external power is removed. The 3D accelerometer and flash memory round out a product that is low cost but still packs a punch. The Dart can simultaneously use GPS and GLONASS satellites, providing double the number of positioning satellites than standard tracking products. The result is faster acquisition and more accurate and reliable tracking.

Location and tracking

  • GPS, GLONASS
  • Interval and continuous tracking modes

Mobile networks

  • 2G  850/900/1800/1900 MHz
  • 4G LTE 1-5, 6, 8, 12, 13, 17, 19, 20, 25, 26, 28 bands

Power supply

  • Build-in battery (LiPo, 200 mAh)
  • External power supply (DC, 8..36V)

Inputs and outputs

  • 1 ignition input, 2 digital inputs
  • 1 digital output

Other features

  • Flash Memory
  • 3 Axis Accelerometer
  • Backup Battery
  • Low Noise GPS Amplifier
  • Concurrent GPS and GLONASS Tracking

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port46992
Auto registrationYes

General information

PurposeVehicle
Weight150 g (5.29 oz.)
Size95x55x17 mm (3.74x2.17x0.67 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeLTE 700/850/900/1700/1800/1900/2100, GSM 850/900/1800/1900
Cellular network generation4G, 2G

Location information

LBSYes
GPSYes
GLONASSYes

Features

Remote outputs controlYes
OdometerYes
Motion sensorYes
Hardware keyYes
Battery capacity200 mAh

Interfaces

Discrete inputs3
Number of outputs1
Analog sensorYes
