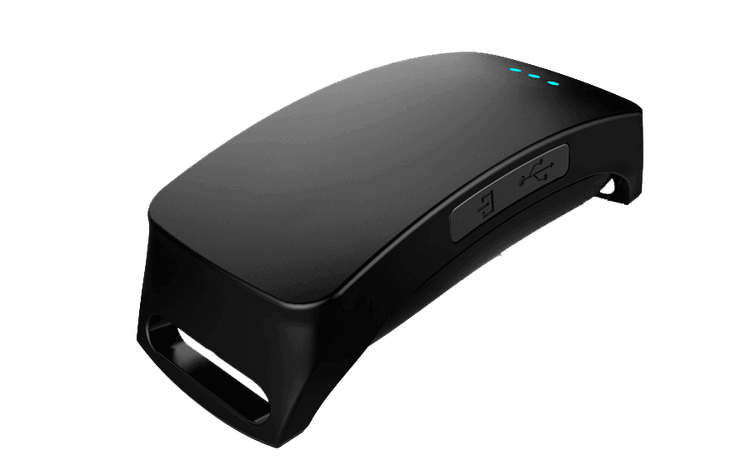

Defenstar DS007

Defenstar DS007 is a miniature size pet GPS tracker that can be used for monitoring people as well.

Show more

Package content

The package contents:

  • GPS Tracker
  • USB Cable

Location and tracking

DS007 has only GPS support, and it doesn’t support GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

There are only two basic tracking modes, which do not provide too much flexibility: by time interval and by distance.

Mobile network

With Quad-band GSM 2G module Defenstar DS007 can be operated all over the world.

Power supply

DS007 contains a 750 mAh battery. It is claimed that battery can last for 5-6 hours of work in normal conditions.

Remote management

DS007 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED indication

Defenstar DS007 has three LEDs for GPS, GSM and Power status.

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47733

General information

PurposePet, Personal
InstallationNot required

Housing

Weight38 g (1.34 oz.)
Size67x30x21 mm (2.64x1.18x0.83 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Hardware features

Battery capacity750 mAh
Built-in batteryYes

Tracking features

Tracking modesContinuous

Events monitoring

Battery lowYes
Supported

Self monitoring

GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported

Certification

CEYes
FCCYes
