Carscop CCTR-830

More from Carscop

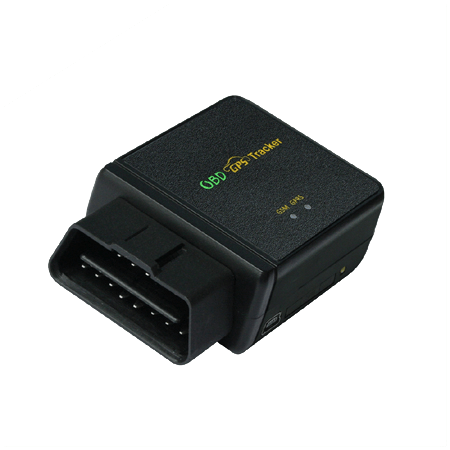

Carscop CCTR-830 is an OBDII-type tracker, that can be is easily installed into diagnostic port of a car. GPS tracker takes power from it but it can not read OBDII data.

Show more

Location and tracking

Carscop CCTR-830 is embedded with GPS and doesn’t have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology.

OBDII data

CCTR-830 can’t read any data from OBDII port. But it supports “Check engine” (MIL) and DTC error codes reading by SMS.

Mobile networks

With Quad-band GSM/CDMA 2G module Carscop CCTR-830 can be operated all over the world.

Power supply

Carscop CCTR-830 uses OBDII Connector Type B and voltage range 9-40V, which makes possible to install it both on cars and trucks.

CCTR-830 also features a built-in rechargeable backup battery. When fully charged it ensures about 1-2 hours of device operation (in normal conditions).

Local and remote management

Carscop CCTR-830 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Carscop CCTR-830 has two LEDs

  • Green  LED indicates GSM/GPRS mode
  • Red LED indicates GPS reception

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47735
Auto registrationYes

General information

PurposeVehicle
Size64.5x50x27 mm (2.54x1.97x1.06 in)
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

GNSS signal levelYes
LBSYes
GPSYes

Features

OdometerYes
Built-in batteryYes
Battery capacity250 mAh

Interfaces

Discrete inputs2
