Select GPS tracker model

Click on the model image to see detailed information and current list of supported features

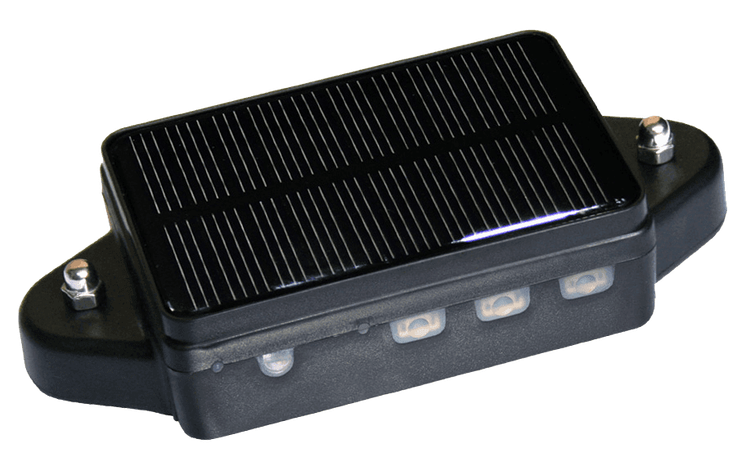

Carscop CCTR-808S

Carscop CCTR-808S is a simple and cost-effective GPS tracking device. It's main features are solar battery and huge backup battery, which is 4000 mAh. Device also has waterproof housing and magnet pins.

Package contents

The device is supplied in a cardboard box, which includes:

  • 1 main unit
  • 1 car charger
  • 1 12/24V DC adapter
  • 1 USB wire
  • and a manual.

Location and tracking

Carscop CCTR-808S is embedded with GPS and doesn't have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology.

As the back-up, it uses Cell-ID (LBS) location technology.

SOS-button

The device has built-in SOS button, but it only activates SMS-message/calls to the pre-defined numbers.

Mobile networks

With Quad-band GSM 2G module Carscop CCTR-808S can be operated all over the world.

Power supply

Carscop CCTR-808S has a 12/24V adapter, which makes possible to use it with all car models.

CCTR-808S also features a built-in rechargeable backup battery of 4000 mAh capacity. When fully charged it ensures about 2 days of device operation (in normal conditions).

The device also features built-in solar battery. Place the tracker in the sunlight, and the solar battery will recharge the tracker automatically, in the long distance transport or longtime tracking please install the tracker in the place with sunlight, this can extend the battery working time, but it is impossible to finished fully charging only by solar power when working.

Note: The voltage of the charger must not be higher than 5.5V. High voltage will damage the tracker. Please use the OEM adapter, it needs 5-10 hours to charge the tracker fully. Place the tracker in the sunlight as far as possible and it will extend the battery working time observably.

Local and remote management

Carscop CCTR-808S tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Carscop CCTR-808S has one LED indicator (Green)

Carscop CCTR-809

Location and tracking

GPS, A-GPS and LBS support, support both continuous and interval modes

Mobile networks

GSM Frequency: 850/900/1800/1900 MHz. No 3G support.

Power supply

Hi-capacity in-build 6000 mAh Lithium battery

Local and remote management

The device can be remotely managed by SMS or GPRS

Portability:

The tracker features waterproof casing (class IP67) and 4 magnet pins, which allows it to be attached to any metal surface.

Carscop CCTR-830

Carscop CCTR-830 is an OBDII tracker. It can be is easily installed into the car diagnostic port.

Location and tracking

Carscop CCTR-830 is embedded with GPS and doesn't have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology.

OBDII data

CCTR-830 can't read any data from OBDII port. But it supports "Check engine" (MIL) and DTC error codes reading by SMS.

Mobile networks

With Quad-band GSM/CDMA 2G module Carscop CCTR-830 can be operated all over the world.

Power supply

Carscop CCTR-830 uses OBDII Connector Type B and voltage range 9-40V, which makes possible to install it both on cars and trucks.

CCTR-830 also features a built-in rechargeable backup battery. When fully charged it ensures about 1-2 hours of device operation (in normal conditions).

Local and remote management

Carscop CCTR-830 tracker can be fully controlled over GPRS. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

Carscop CCTR-830 has two LEDs

  • Green  LED indicates GSM/GPRS mode
  • Red LED indicates GPS reception

Looking for other Carscop model? Suggest us to integrate it.
