C2STEK FL2000G

More from C2STEK

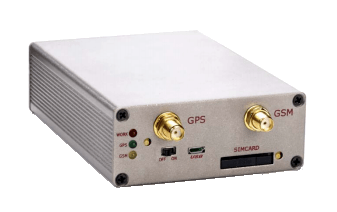

FL-2000G is a terminal with GPS and GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. It is important to mention that FL-2000G has plenty of additional inputs and outputs, which let you control and monitor other devices on remote objects.

Show more

Location and tracking

  • GPS
  • Interval and continuous tracking modes

Mobile networks

  • Quad Band GSM module
  • 2G Network

Power supply

  • Build-in backup battery
  • Power supply: 9-36V DC

Inputs and outputs

  • 6 Digital inputs
  • 2 Analog inputs
  • 3 Digital outputs

Other features

  • Flexible configuration for data acquisition and sending
  • Multi-level Sleep modes
  • More than 15000 waypoints record storage capability
  • Two IP and Ports for server application backup
  • 3 status LED: GSM, GPS, Work

Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47674
Auto registrationYes

General information

PurposeVehicle
Size100x75x30 mm (3.94x2.95x1.18 in)
External antenna (GNSS)Yes
External antenna (Connection)Yes

Connectivity information

Cellular network typeGSM Quad Band
Cellular network generation2G

Location information

Forced GNSS location update over GPRSYes
GPSYes

Features

Remote outputs controlYes
OdometerYes
Built-in batteryYes

Interfaces

Discrete inputs6
Number of outputs3
Analog sensorYes
