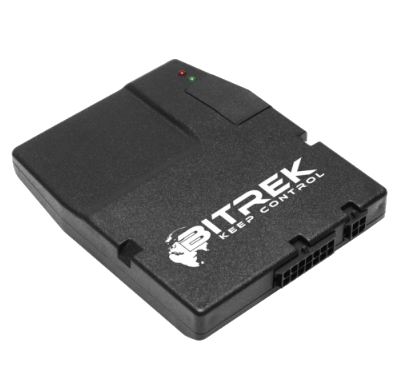

Bitrek BI520RSE

BI530RSE is designed for GPS monitoring and control of the vehicle in ONLINE mode with support for the connection of additional sensors. BI530RSE determines coordinates, speed, mileage, collects data from additional equipment and sensors, and transmits all information to the server via a GPRS channel.

Show more

BI520RSE is used for navigation, remote control, and monitoring of the vehicle or other remote objects.

The monitoring device is intended for installation on any mobile or remote stationary object for the purpose:

  • determine geographic coordinates, speed and driving directions;
  • ensuring the collection of data from external devices;
  • control of executive devices;
  • data transmission to the control center.

Location and tracking

  • GPS, GLONASS
  • Continuous tracking mode

Mobile networks

  • GSM 900/1800

Power supply

  • Build-in battery 130 mAh
  • External power supply DC from 9 to 36 V

Inputs and outputs

  • 4 discrete, analog or frequency inputs
  • 2 universal outputs

Other features

  • Local and remote management
  • LED indication
  • Accessories

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47776

General information

PurposeVehicle
InstallationProfessional

Housing

Weight75 g (2.65 oz.)
Size96x77x14 mm (3.78x3.03x0.55 in)
Waterproof classIP54

GNSS Location

Internal antenna (GNSS)Yes
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM 900/1800
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs2
Number of inputs (all types)4
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
Analog inputsYes
Supported
Frequency inputsYes
Supported
RS485 interfaceYes
Supported

Hardware features

Internal temperature sensorYes
Supported

Tracking features

Tracking modesContinuous
OdometerYes
Supported

Self monitoring

Network operator IDYes
Supported
Network roaming statusYes
On request
GNSS signal levelYes
Supported
External power source voltageYes
Supported
Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote outputs controlYes
