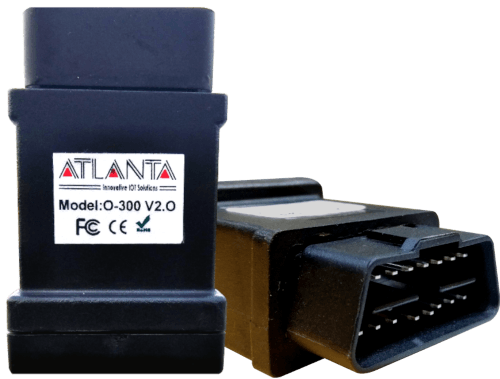

Atlanta O-300

Atlanta O-300 is a GPS tracking device with average functionality, which can be used for vehicle tracking.

Show more

Packaging content:

  • O-300 tracking device
  • User manual

O-300 Features:

  • Analog inputs -1
  • Large memory for data retention
  • High accuracy internal accelerometer
  • Supports TCP/IP/UDP/FTP/HTTP/data
  • Compact size with GSM/GPS/OBD
  • Digital inputs/outputs- 4/1
  • DTC reading to detect fault in the vehicle
  • Support over the air firmware up-gradation
  • Internal battery backup
  • Small size

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47687

General information

PurposeVehicle
InstallationNot required
Special form factorOBDII Dongle

Housing

Weight80 g (2.82 oz.)
Size99x54x16 mm (3.9x2.13x0.63 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of inputs (all types)3
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported

Hardware features

Battery capacity300 mAh
Built-in batteryYes
Supported
Detach sensorYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported
OdometerYes
Supported
ECO drivingYes
Supported

Events monitoring

Battery lowYes
Supported
External power cut offYes
Supported
DetachYes
Supported

Self monitoring

Network signal levelYes
Supported
Internal battery levelYes
Supported

CAN/OBDII reading

CAN/OBDII reader typeInternal
Supported
CAN/OBDII parametersFuel level, fuel consumption, engine RPM, throttle position, speed, engine load, coolant temperature, DTC error codes and other

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported
Forced GNSS location update over SMSYes
On request

Certification

CEYes
FCCYes
