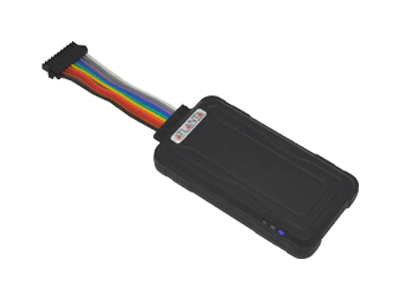

Atlanta L-100

Atlanta L-100 is a GPS tracking device with average functionality, which can be used for vehicle tracking.

Show more

Packaging content:

  • L-100 tracking device
  • Wiring harness
  • Fuse
  • Relay with socket (optional)
  • SOS button (optional)
  • User manual

L-100 Features:

  • Large memory for data retention
  • High accuracy internal accelerometer
  • GPS/GSM antenna internal
  • GPS position accuracy <3meter
  • Support over the air firmware upgrade
  • Support GPRS tracking
  • LED indication for GSM & GPS status
  • Analog inputs -1
  • Supports TCP IP/UDP/FTP/HTTP/data
  • Digital inputs/outputs- 4/1
  • Internal battery backup
  • Small size

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port46990

General information

PurposeVehicle
InstallationProfessional

Housing

Weight80 g (2.82 oz.)
Size99x54x16 mm (3.9x2.13x0.63 in)

GNSS Location

Internal antenna (GNSS)Yes
GPSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Number of outputs1
Number of inputs (all types)5
ACC/Ignition inputYes
Supported
Discrete inputsYes
Supported
OutputsYes

Hardware features

Battery capacity450 mAh
Built-in batteryYes
Supported
Emergency buttonYes
Supported

Hardware extras

Emergency buttonYes
Supported

Tracking features

Tracking modesContinuous
Location by Cell IDYes
Supported

Events monitoring

Battery lowYes
Supported

Self monitoring

Internal battery levelYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over GPRS), Yes
Supported

Certification

CEYes
FCCYes
