Adding extra maps to GPS tracking platform

Navixy platform supports all major web map services by default including Google, Bing, OpenStreetMap, Wikimapia, Yandex and others. It also happens that users may need some additional cartographic features, extra detalization, or special data to be shown on a map. This post is about how to add new improved maps to Navixy service.

Why you may need more maps

In practice, our clients have two most common cases of using extra cartographic features:

Poor map detalization for a region. Sometimes public map services don’t provide you with a great detalization level. Usually, it concerns back-country territories. For example, you can clearly see streets and blocks on the map but roads and house numbers can be hardly visible. Meanwhile the client or the system platform owner has a licensed map of the region with higher detalization that can be added to the platform. This is the case!

Adding extra maps to GPS tracking platform

The need of additional information. Special GIS (for the industrial or scientific purposes) may require additional information on a map. It may be infrastructure networks or industrial objects like a deposit of mineral resources, mines, transport route and telecommunication networks. Also, it may be information about soil structure, ethnographic statistics or other kinds of data.

These issues may be solved using extra cartographic layers on the map. These layers may be added to any place on the map from a small district to countries and continents. It can work for particular users and accounts (limited use) as well as for any Navixy user (public use).

Add a new cartographic layer to Navixy

Generally there are 3 steps to add a layer:

  1. Prepare tile-data for cartographic features
  2. Run a tile-server using the data
  3. Add these layers to Navixy

The first two steps are for a client who can get a consultation with Navixy team. We also help make the third step, when a tile-server has already started and data is transmitted well. Navixy may limit access to the layers if needed.

1. Preparing map tiles

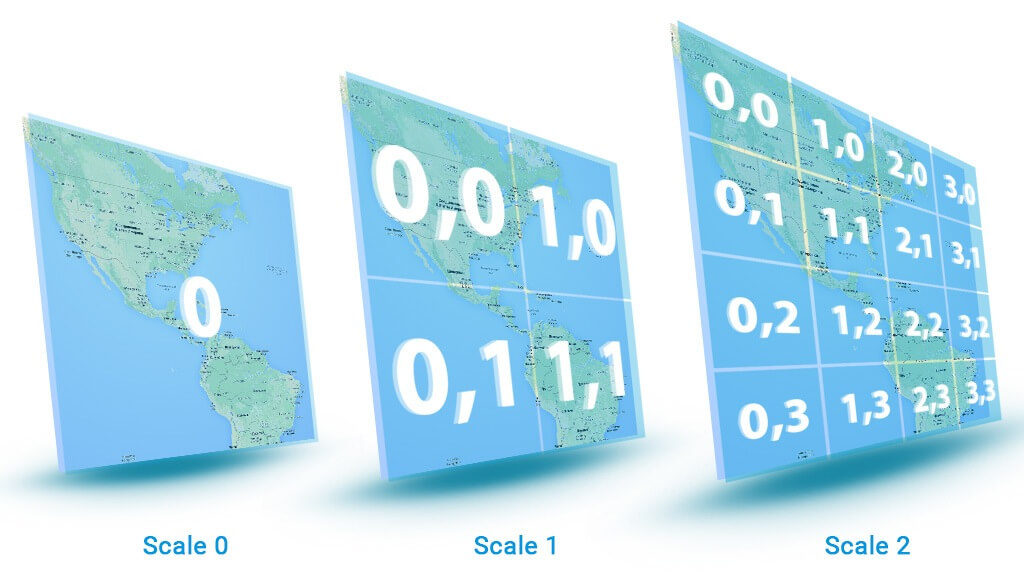

An available cartographic document needs to be converted to tile-graphics - uniform pieces with the connection to graticule values (coordinates) for each scale level.

Adding extra maps to GPS tracking platform

The most popular tile format is MBTiles (created by Mapbox). Other formats, for example, GeoTIFF can be also used for Navixy. Regardless of the format, all the tile-files must be imported in the Mercator projection.

It can guarantee correct user's layer overlapping on any type of map that is used by Navixy, because all the maps are made in the Mercator projection. A tile size may vary, thus, it will be converted to the most common size - 256 ppi.

2. Running a tile-server

You need to deploy the prepared tile-files on a server. Every file will have its direct link:

http://tileserver.com/{z}/{y}/{x}

It allows to get a correct response at the request of:

//tileserver.com/{z}/{x}/{y}.png

A tile server may be run independently or through a special cloud service.

Option A: Your own tile-server

Running your own tile-server is an ordinary task for any good system administrator. The biggest problem is not the configuration process, but the high demands to computing resources and server equipment. There are some tasks may be run in server:

  • Tile transmitting and checking its availability to be uploaded from cache or to be rendered.
  • Load sharing and creation of request queue
  • Conversion of vector data to raster tiles
  • Upload of incoming data to a database (not necessary when the database is already running and only object data (like buildings and roads) is required)
  • Database control (database management system)

Sysadmins may choose Unix-like operating system because it is simpler and cheaper. You may also find some “out-of-the-box” solutions for it. For example, tile-server may be deployed from Ubuntu packages using the OpenStreetMap mount. All information about Unix-like systems and tile-servers may be found here.

Option B: Sided tile-server (SaaS)

There are a lot of companies that provide ready-made solutions for tile-servers deploying and supporting. In this case, all needed components and computing resources will be given by a service provider. The most popular of them are Mapbox, CartoDB, Esri, and ArcGIS.

3. Add a layer to Navixy

When the tile-server has been started with all cartographic features uploaded, it can be intergrated into the Navixy map panel. You must add a new external web-cartographic plug-in by filling a tile-server URL and set access options for it by filling ID of service or user profiles if needed.

The new layer will appear in the list of available layers.

Add a layer to Navixy

Every layer may be placed separately (in a substitution mode) or with other layers (in an overlapping mode). For the last option, all needed layers may be checked.

This is a general guide on how to add new maps to Navixy service. If you need any kind of assistance, just contact our support team.
